UN38.3 and IEC62133 approved lithium iron phosphate battery pack for UPS

Application: Solar/Wind Energy Storage/lBack-up Power for UPS/ EPS/lTelecommunication/lLow Speed Electric Vehicles/lMarine Boats/lDC Power /lElectric Toys

The Battery Model: HWE-4F7
Nominal Voltage: 12.8V
Nominal Capacity: 7.0Ah
Cycle Life: 3000 times, 80% DOD
Recommended Charge Current: 3.5A
Max Charge Current: 7.0A
Max Discharge Current: 7.0A
Peak Discharge Current: 14.0A(≥3S)
Working Temperature: -20 to 60ºC
Enclosure Protection: ABS+PC

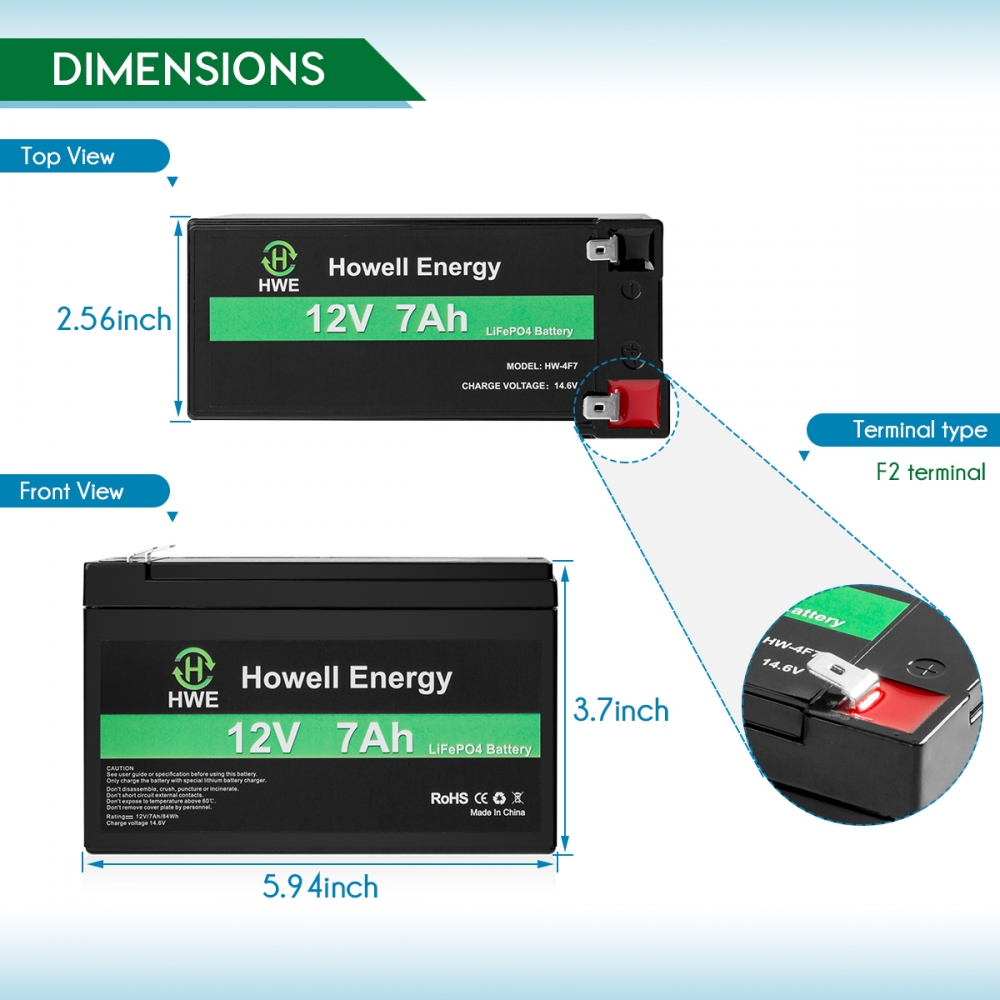

Dimension((L x W x H/TH)): 151 x 65 x94/100mm
Weight: 0.9Kg
Certifications: UN38.3,CE


Product Introduction

243253

PRODUCT PARAMETER

Model MODEL : HWE-4F7 Peak Discharge Current 7.0A
Products Type Lifepo4 Efficiency 98%
Energy (Wh) 98.6 Depth of Discharge 100%
Nominal Voltage (Vdc) 12.8 Dimension (L*W*H, mm) 151*65*100
Nominal Capacity (AH) 7.0 Communication /
Maximum Modules in Series/Parallel 2S4P Protection Class IP65
Charging Cut-off Voltage (Vdc) 14.6 Weight 0.9KG
Standard Charge Current 1.4A Operation Life 10+ years
Recommended Charge Current 3.5A Operation Cycle Life Over 3000 times
Maximum Charge Current 7.0A Operation Temperature 0-50℃
Discharge Cut-off Voltage 10V Storage Temperature minus 20 -- 60℃
Standard Discharge Current 1.4A Products certificates IEC62619, CE
Maximum Discharge Current 3.5A Transport Certificates UN38.3 , MSDS

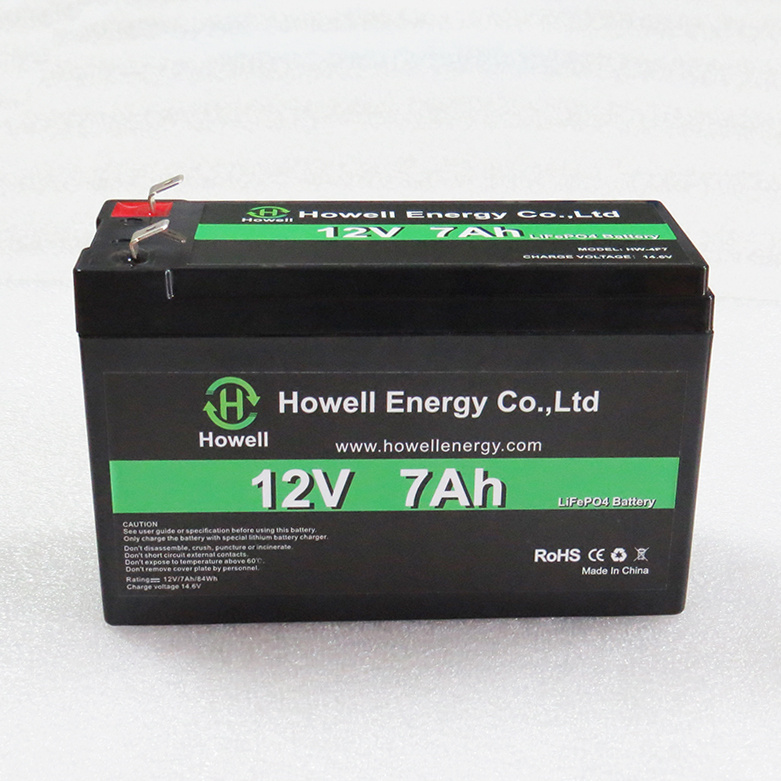

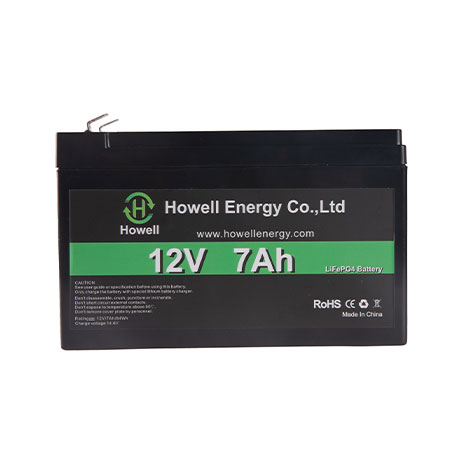

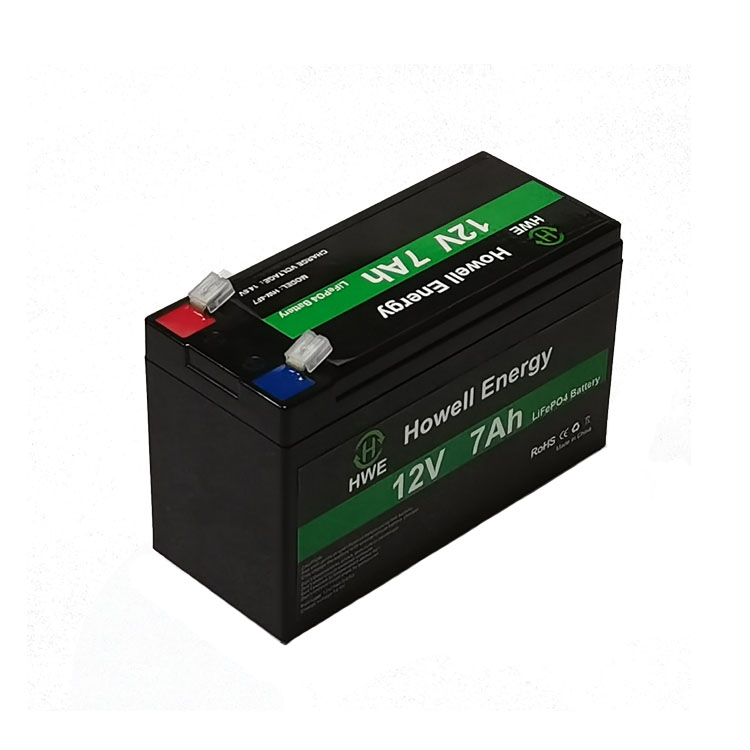

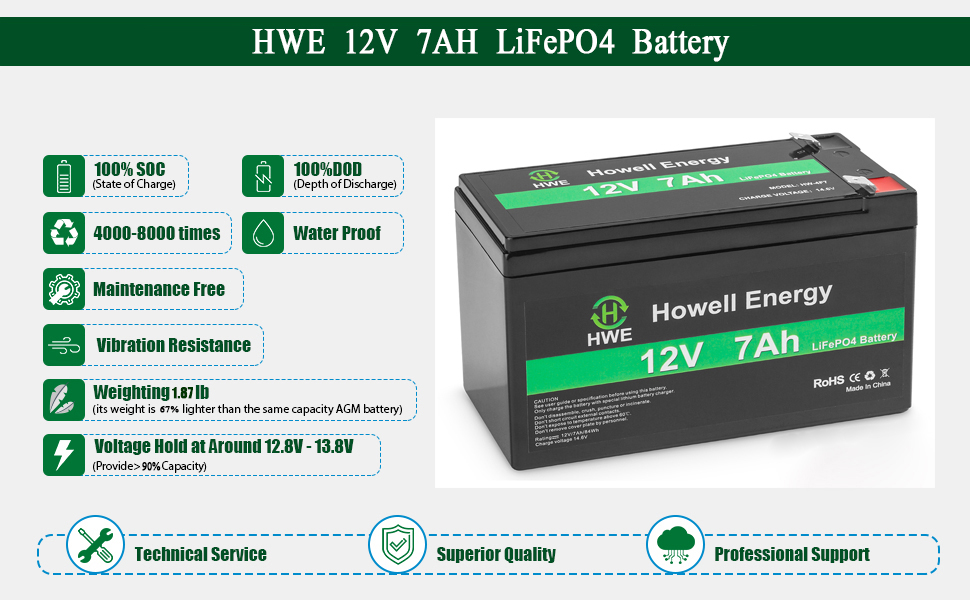

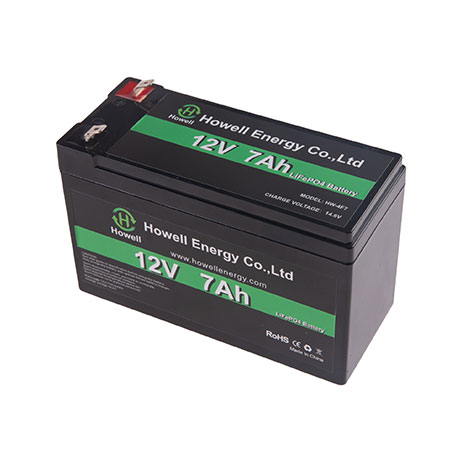

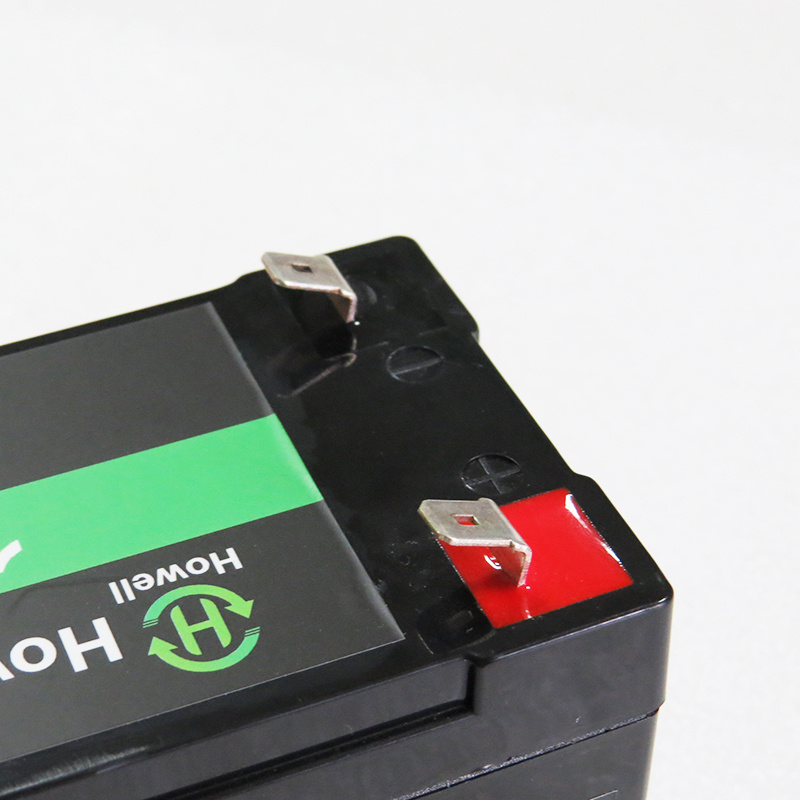

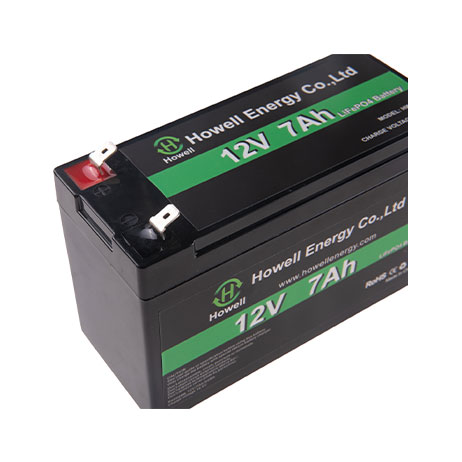

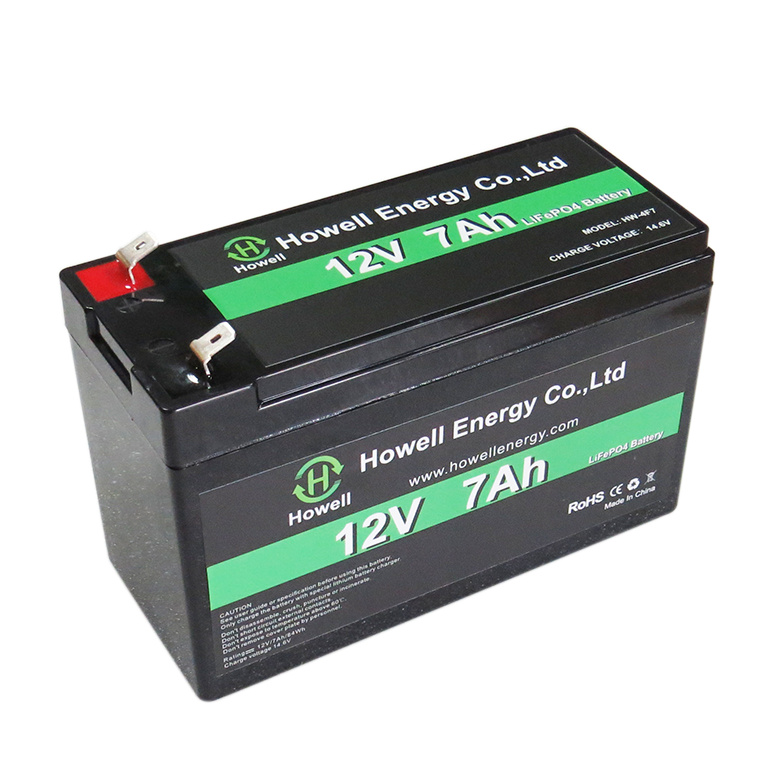

PRODUCTS DISPLAY

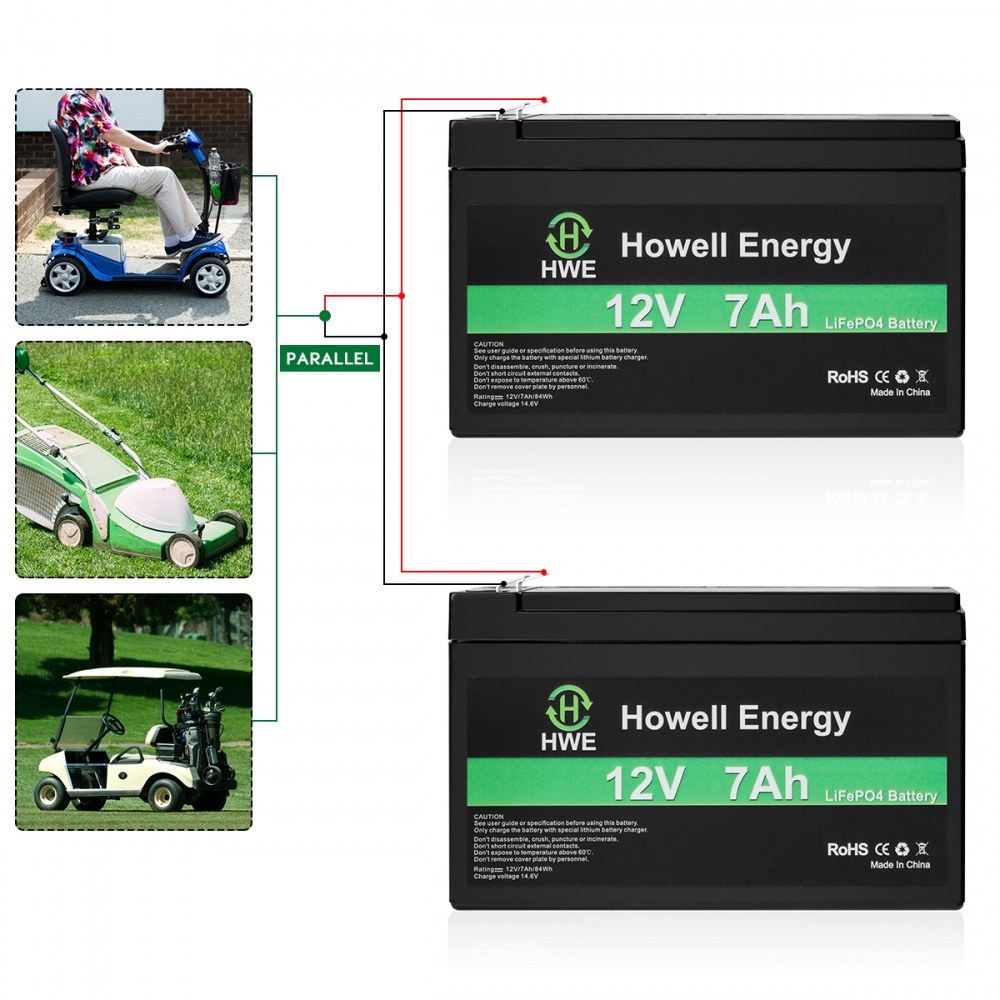

APPLICATION

  • RV/MOTORHOME

  • Wind and solar energy

  • Communication base station

  • Household energy storage

  • Electric vehicle

  • Yacht/BOAT

Howell 12V lithium battery ( LFP-lithium iron phosphate) is a kind of new environmental-friendly backup power system product made by our self-developed core technologies. The product has great features of short-time and high-rate discharge (1C) and over 3000 times of cycle life. With a built-in BMS, the product is fully protected under high-voltage protection and featured with higher reliability. It also has impressive weight reduction and high integration which can save more installation space.   The product has no memory effect and enjoys free maintenance, saving a lot of labor for people. In addition, it enjoys over 10 years of operational life.  12V lithium battery is a perfect replacement for the conventional lead-acid, AGM, gel batteries for its high performance and increased efficiency and can be widely used in many fields like camping cars, RV motorhome, golf carts, boat marine yachts, electric skateboard, LED backup, engine starting battery, mobile POS and mining light.

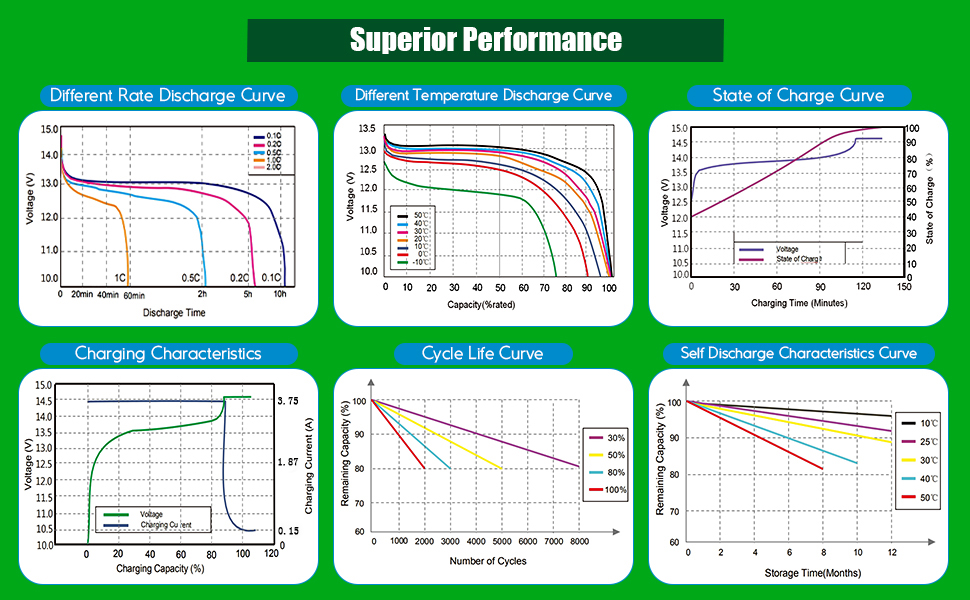

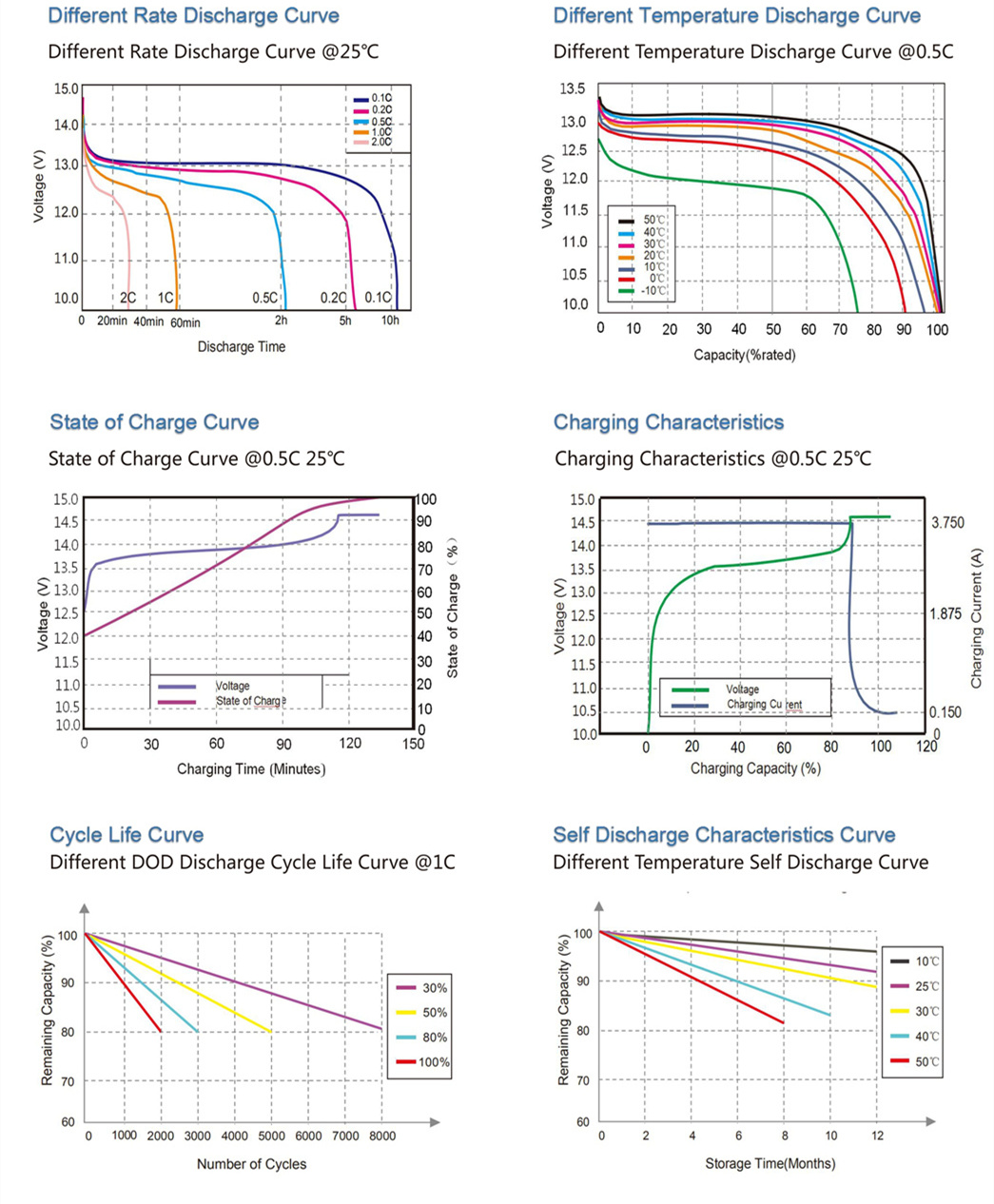

PERFORMANCE CHARACTERISTICS





PRODUCTS ADVANTAGE



1.It adopts lithium iron phosphate battery, which is environmentally friendly and safe.

2.The service life is long, the product can be guaranteed for 10 years, and the service life is more than 15 years.

3.Modular design, easy for customers to install and maintain.

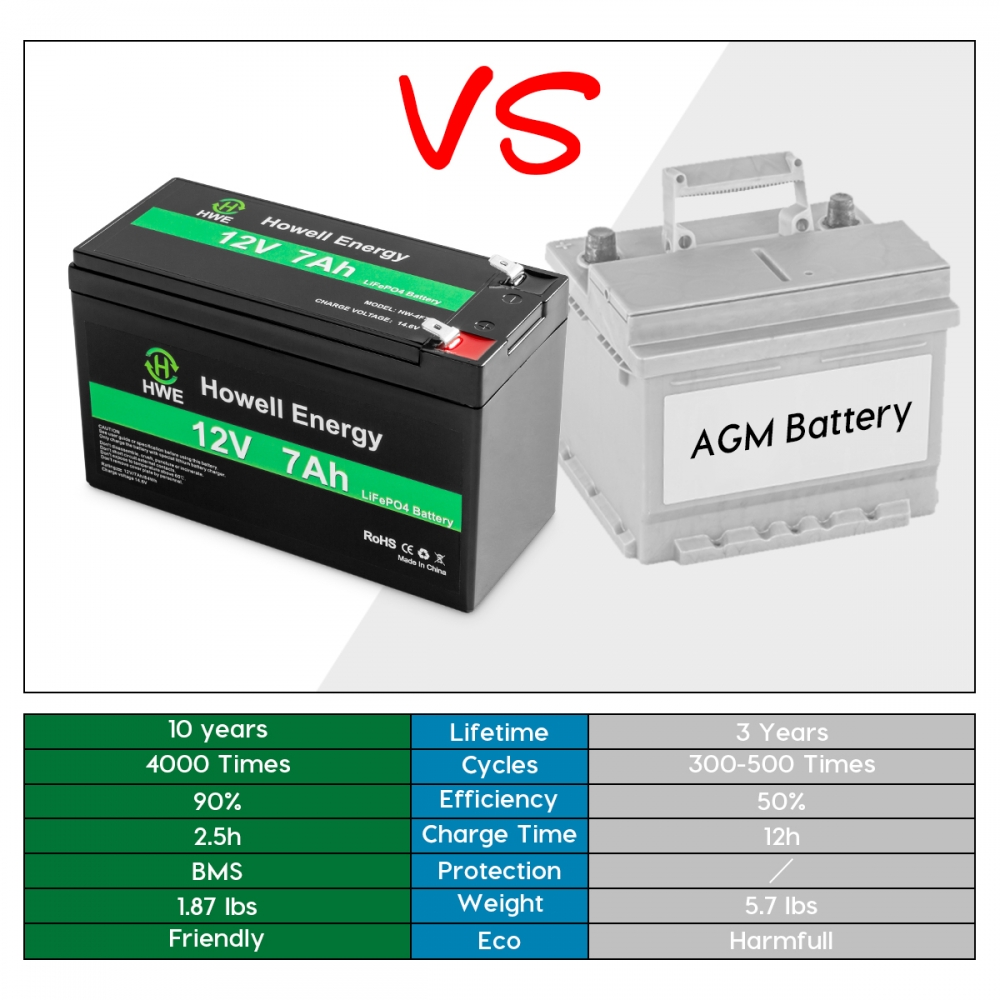

4.Small size, light weight, the same energy lithium battery, the weight and volume are 1/3 of the lead acid.

5.The configuration is flexible, and different capacities can be configured according to customer needs.

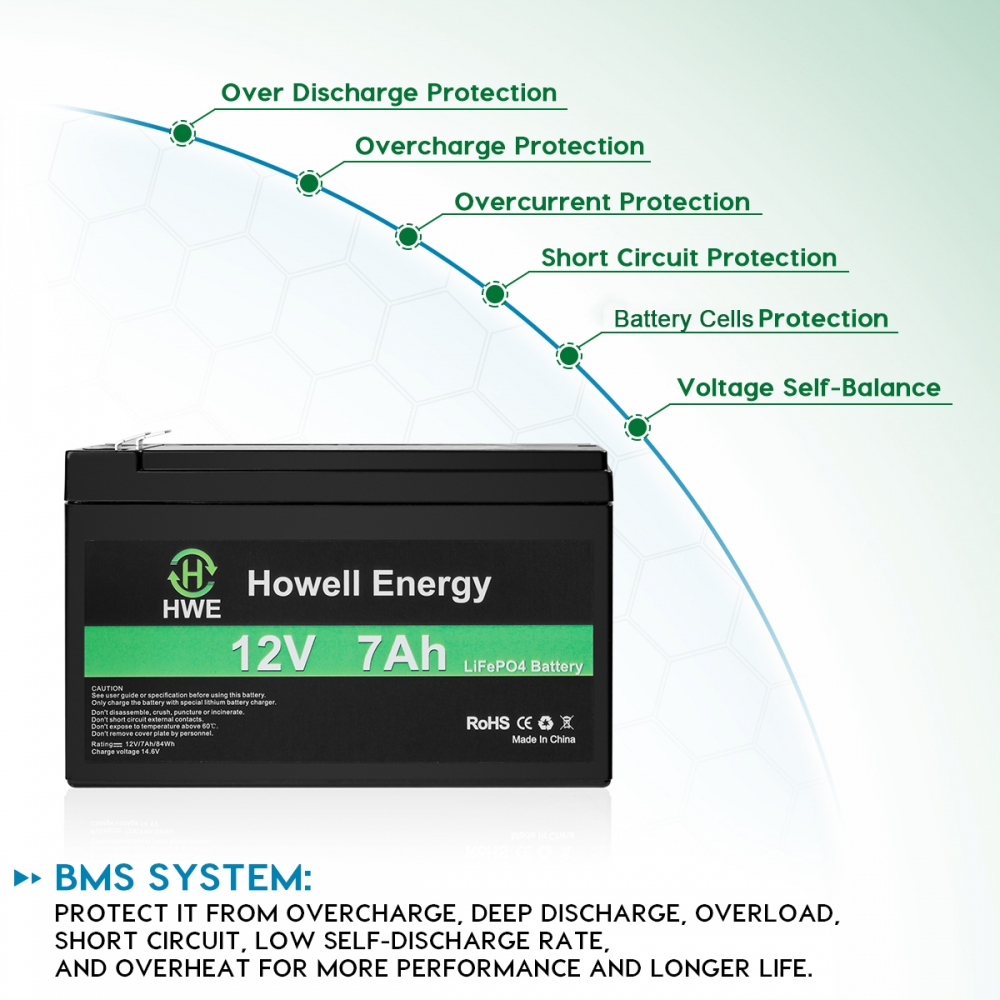

6.The built-in battery management system integrates with multilevel safety features including overcharge and deep discharge protection, voltage and temperature observation, over current protection, cell monitoring and balancing, and over-heat protection.



PACKING


Good Quality Packs




SUPER SAFETY TEST



Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.



WHY CHOOSE US


Experience——more than 21 years of lithium battery professional experience, leading lithium battery.
Certification——North American Certification: UL
                                European certification: CE/ROHS/REACH/IEC62133
                                Asia and Australia Certificate: PSE/KC/CQC/BIS
                                Global certificate: CB/IEC62133/UN38.3/MSDS
Quality control——more than 30 production processes and more than 7 quality inspections to ensure stable quality and high
                                    reliability.
Best materials——insist on choosing the best quality batteries, materials and accessories, and lithium batteries will last longer.
New batteries——all batteries are newly produced.
