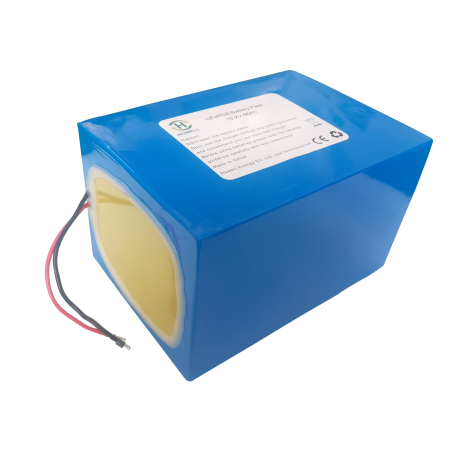

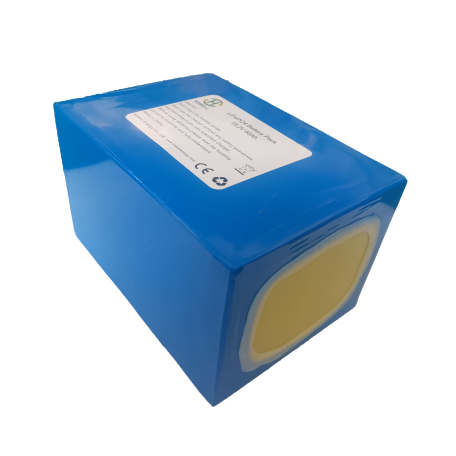

Iron phosphate lithium ion battery pack 19.2V60AH

widely used in lighting, finance, transportation, security, logistics, mining, consumer electronics and other fields

The Battery Model: HWE-19.2V60AH
Nominal Voltage: 19.2V
Nominal Capacity: 60.0Ah
Cycle Life: 4000 times, 80% DOD
Recommended Charge Current: 6.0A
Max Charge Current: 15.0A
Max Discharge Current: 15.0A
Peak Discharge Current: 30.0A(≥ 3s)
Working Temperature: -20 to 60ºC
Enclosure Protection: PVC
Dimension((L x W x H/TH)): 235 x 169 x 152mm
Weight: 10.0Kg
Certifications: UN38.3,CE


Product Introduction

PRODUCT PARAMETER

Model MODEL : HWE-19.2V60AH Peak Discharge Current 15A
Products Type Lifepo4 Efficiency 98%
Energy (Wh) 1152 Depth of Discharge 100%
Nominal Voltage (Vdc) 19.2 Dimension (L*W*H, mm) 235*169*152
Nominal Capacity (AH) 60 Communication /
Maximum Modules in Series/Parallel / Protection Class IP54
Charging Cut-off Voltage (Vdc) 21.9 Weight 10.0KG
Standard Charge Current 6.0A Operation Life 10+ years
Recommended Charge Current 10A Operation Cycle Life Over 4000 times
Maximum Charge Current 15A Operation Temperature 0-50℃
Discharge Cut-off Voltage 6.0V Storage Temperature -20 -- 60 ℃
Standard Discharge Current 10A Products certificates  CE
Maximum Discharge Current 10A Transport Certificates UN38.3 , MSDS

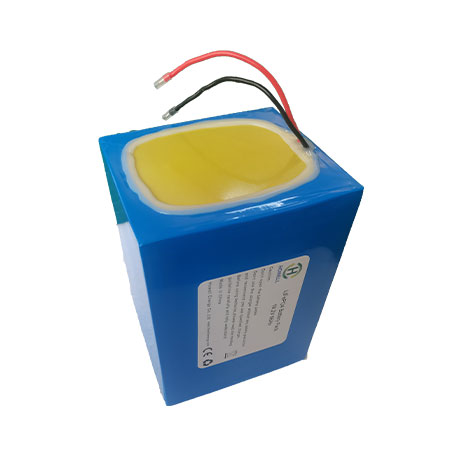

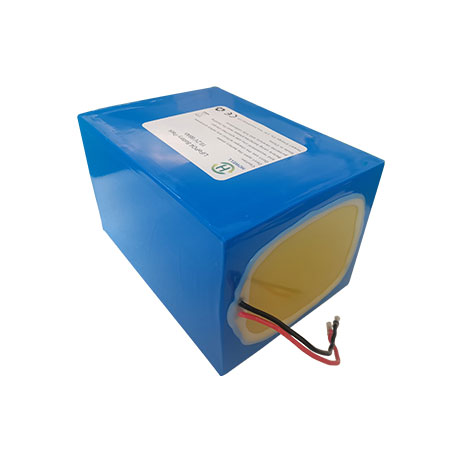

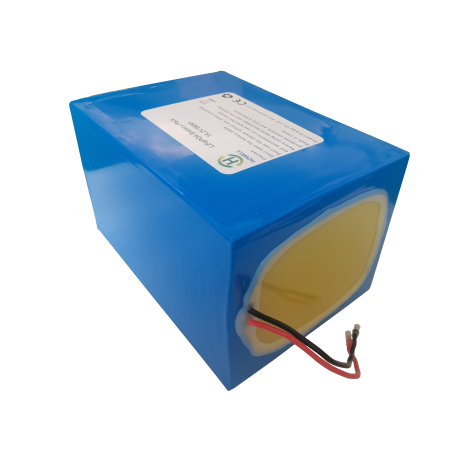

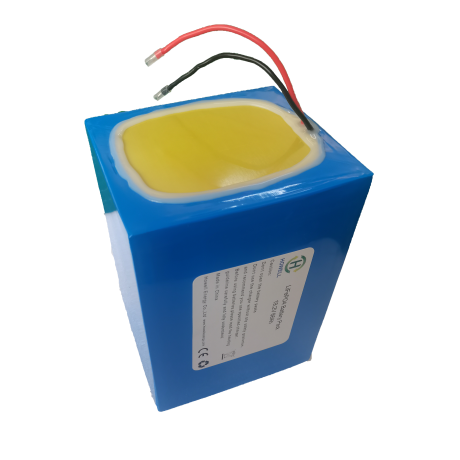

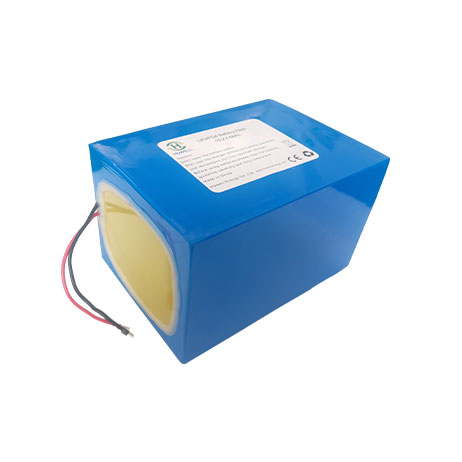

PRODUCTS DISPLAY





APPLICATION

  • RV/MOTORHOME

  • Wind and solar energy

  • Communication base station

  • Household energy storage

  • Electric vehicle

  • Yacht/BOAT

we can customize batery pack as per your speical demand,which included in voltage,capacity,the color of package,Different shapes,connector,wire length,etc. Modular design adopts car-level standards, which is more stable and safe  ï¼Œit is also available for us to provide intrgrated power solution according to customer requirements. The battery pack adopts lithium ion  battery, which has a high cycle life and conforms to the value concept of low carbon, energy saving and environmental protection;

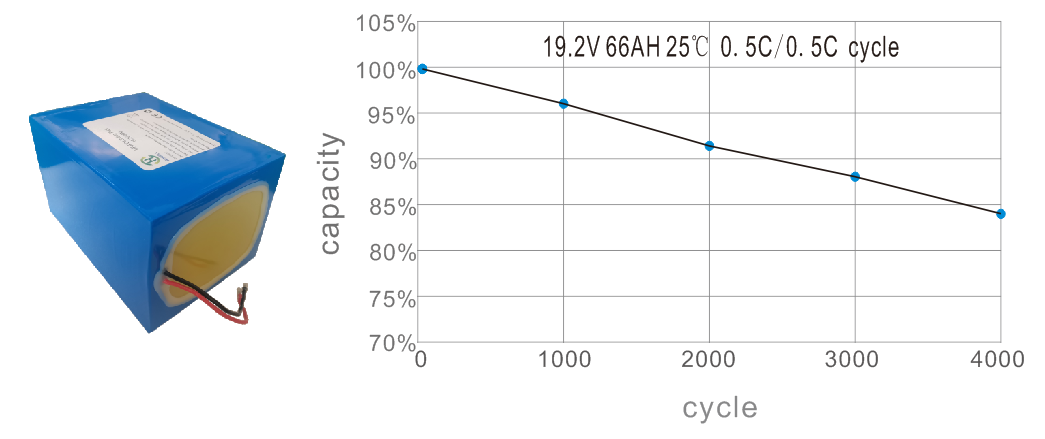

PERFORMANCE CHARACTERISTICS




PRODUCTS ADVANTAGE



1.It adopts lithium iron phosphate battery, which is environmentally friendly and safe.

2.The service life is long, the product can be guaranteed for 10 years, and the service life is more than 15 years.

3.Modular design, easy for customers to install and maintain.

4.Small size, light weight, the same energy lithium battery, the weight and volume are 1/3 of the lead acid.

5.The configuration is flexible, and different capacities can be configured according to customer needs.

6.The built-in battery management system integrates with multilevel safety features including overcharge and deep discharge protection, voltage and temperature observation, over current protection, cell monitoring and balancing, and over-heat protection.



PACKING


Good Quality Packs



VCKCG9IDDWC4}8028WP$FD6


SUPER SAFETY TEST



Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.



WHY CHOOSE US


Experience——more than 21 years of lithium battery professional experience, leading lithium battery.
Certification——North American Certification: UL
                                European certification: CE/ROHS/REACH/IEC62133
                                Asia and Australia Certificate: PSE/KC/CQC/BIS
                                Global certificate: CB/IEC62133/UN38.3/MSDS
Quality control——more than 30 production processes and more than 7 quality inspections to ensure stable quality and high
                                    reliability.
Best materials——insist on choosing the best quality batteries, materials and accessories, and lithium batteries will last longer.
New batteries——all batteries are newly produced.
