Application: Solar/Wind Energy Storage/lBack-up Power for UPS/ EPS/lTelecommunication/lLow Speed Electric Vehicles/lMarine Boats/lDC Power /lElectric Toys

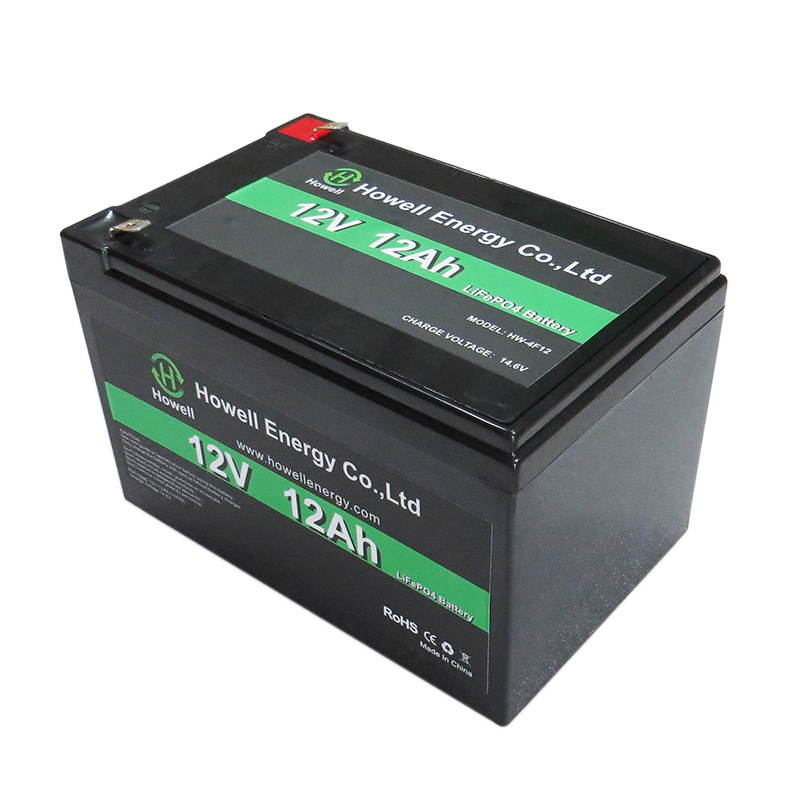

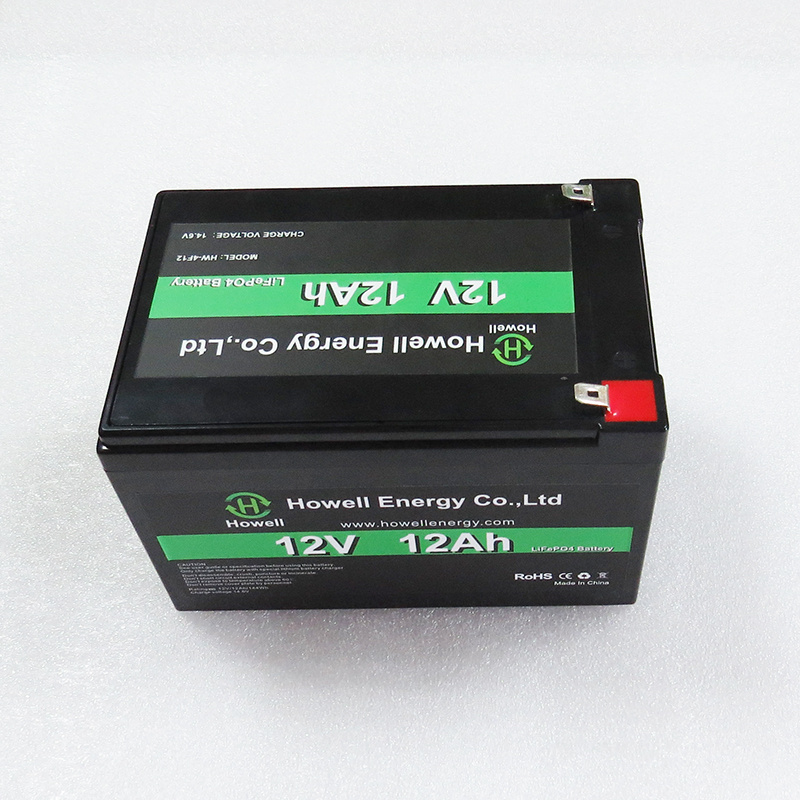

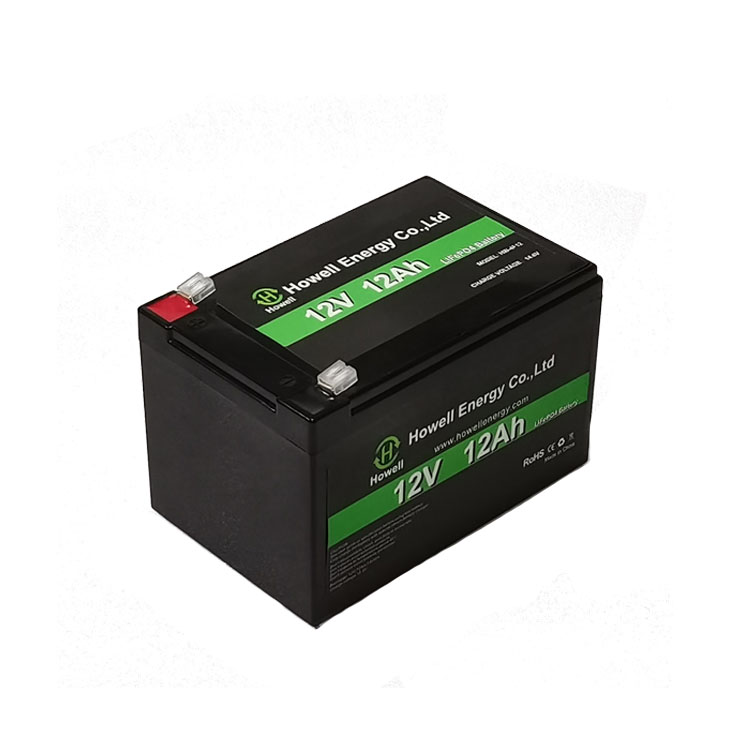

The Battery Model: | HWE-4F12 |
Nominal Voltage: | 12.8V |
Nominal Capacity: | 12.0Ah |
Cycle Life: | 3000 times, 80% DOD |
Recommended Charge Current: | 6.0A |
Max Charge Current: | 12.0A |
Max Discharge Current: | 12.0A |
Peak Discharge Current: | 24.0A(≥3S) |
Working Temperature: | -20 to 60ºC |
Enclosure Protection: | ABS+PC |

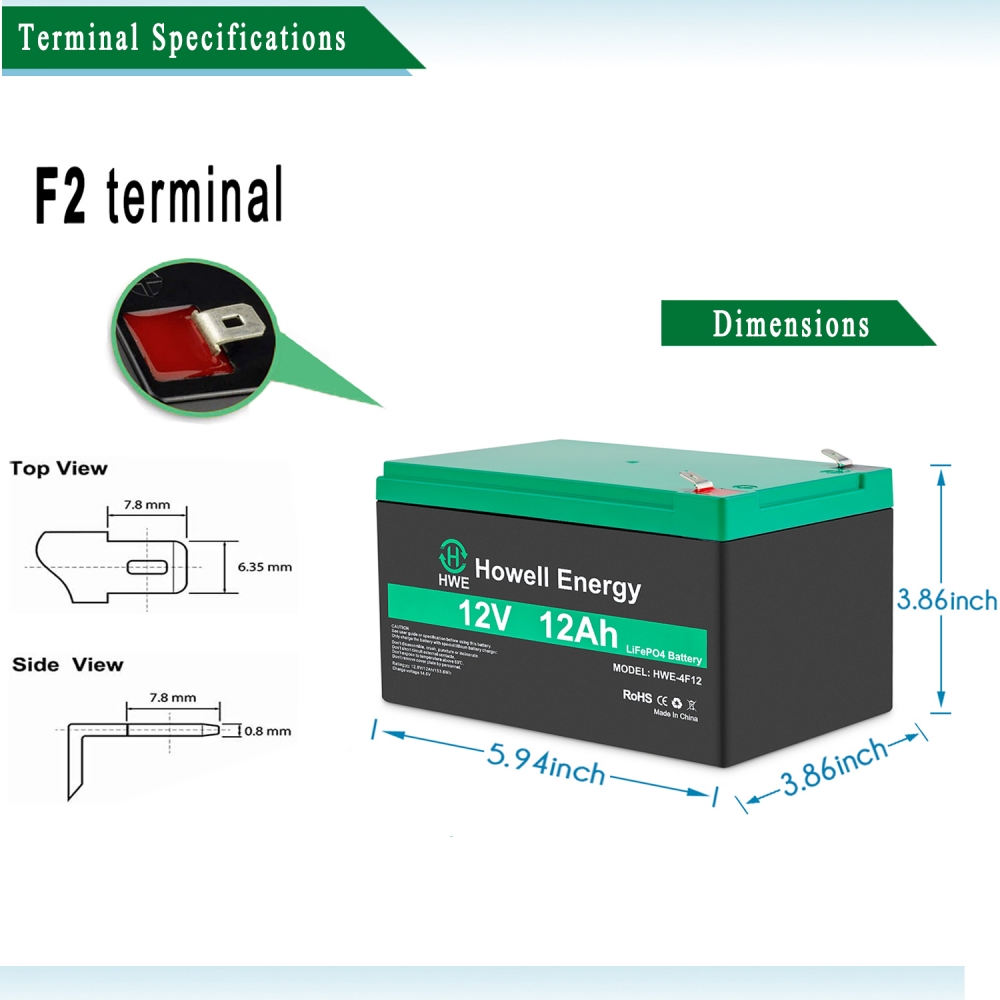

Dimension((L x W x H/TH)): | 151 x 98 x 95/101mm |
Weight: | 1.5Kg |
Certifications: | UN38.3,CE |
Model | HWE-4F12 | Peak Discharge Current | 24.0A |
Products Type | LiFePO4 | Efficiency | 98% |
Energy (Wh) | 89.6 | Depth of Discharge | 100% |
Nominal Voltage (Vdc) | 12.8 | Dimension (L*W*H, mm) | 151*98*101 |
Nominal Capacity (AH) | 12 | Communication | / |

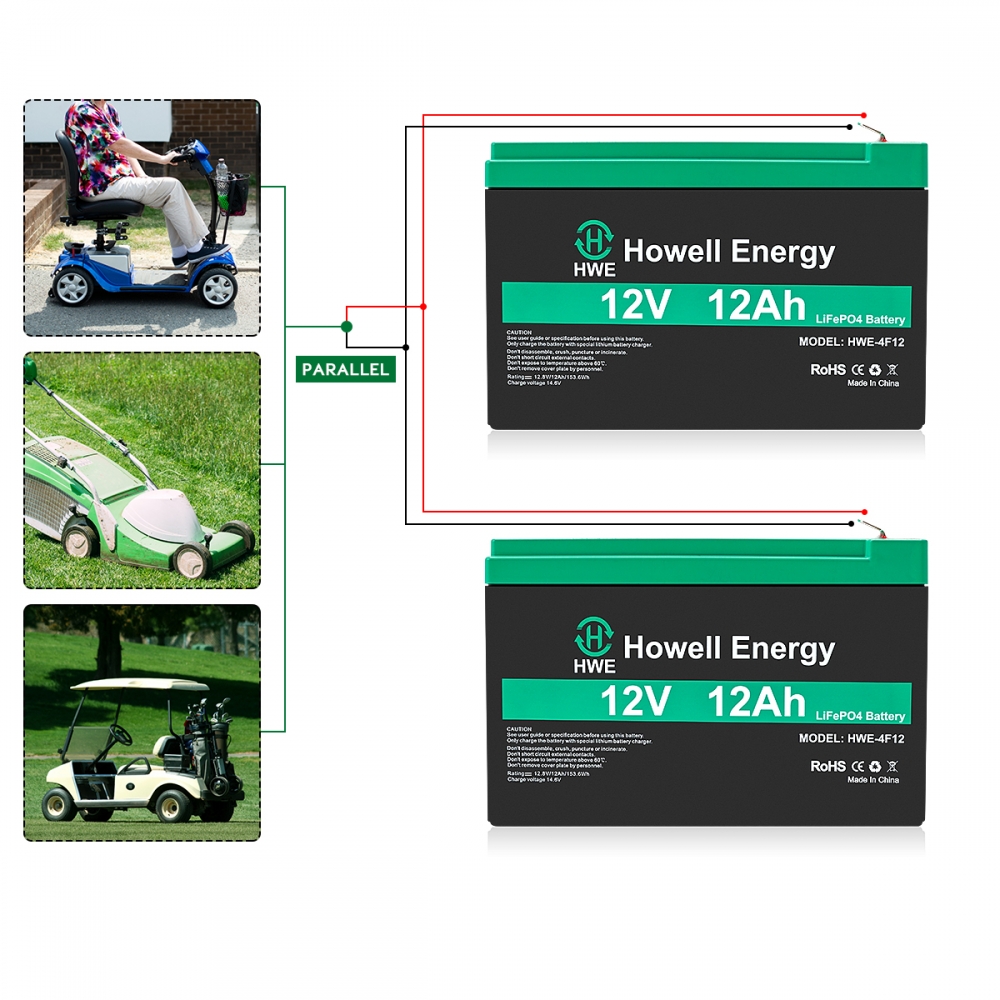

Maximum Modules in Series/Parallel | 2S4P | Protection Class | IP65 |
Charging Cut-off Voltage (Vdc) | 14.6 | Weight | 1.5KG |
Standard Charge Current | 2.4A | Operation Life | 10+ years |
Recommended Charge Current | 6.0A | Operation Cycle Life | Over 3000 times |
Maximum Charge Current | 12.0A | Operation Temperature | 0-50℃ |
Discharge Cut-off Voltage | 10V | Storage Temperature | -20 -- 60℃ |
Standard Discharge Current | 2.4A | Products certificates | IEC62619, CE |
Maximum Discharge Current | 12.0A | Transport Certificates | UN38.3 , MSDS |
●High integrated with less installation space.
●Long life cycle, >3000 times at 80% DOD.

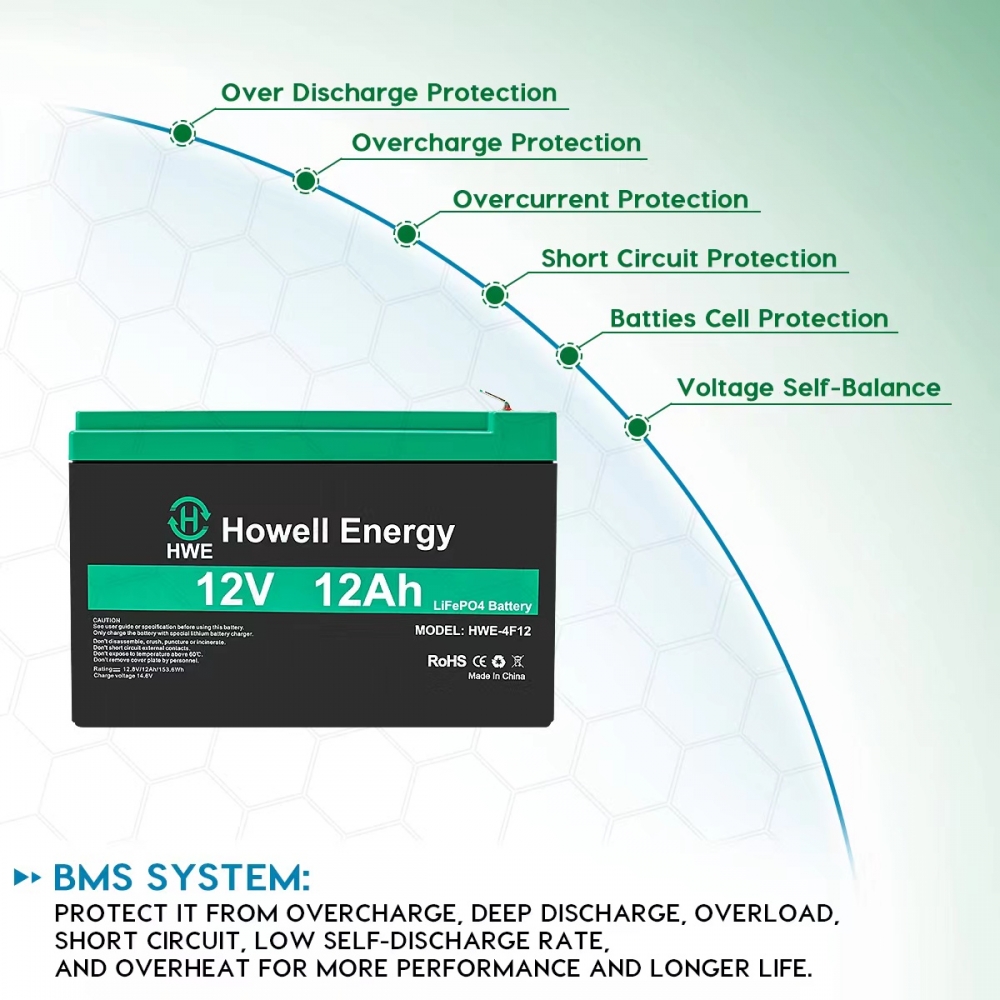

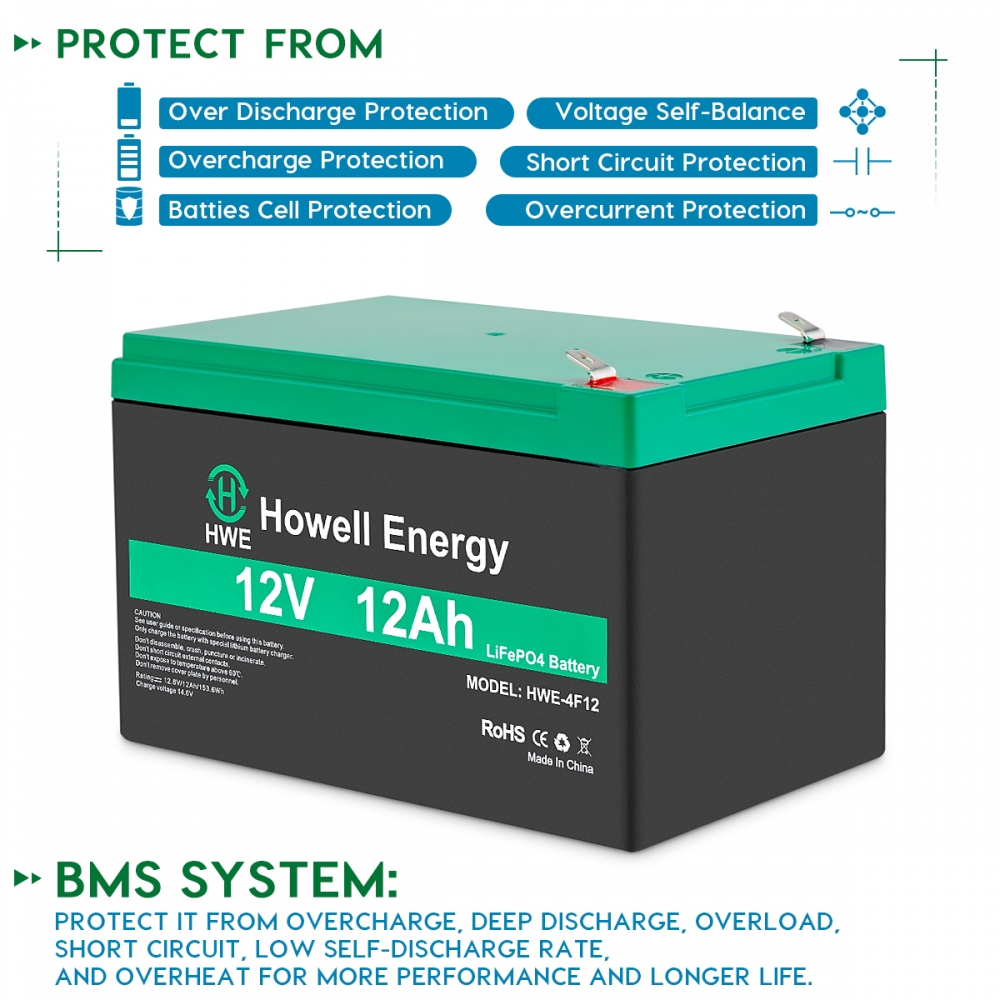

●Internal BMS with full protection, high voltage protection with higher reliability.
●Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry

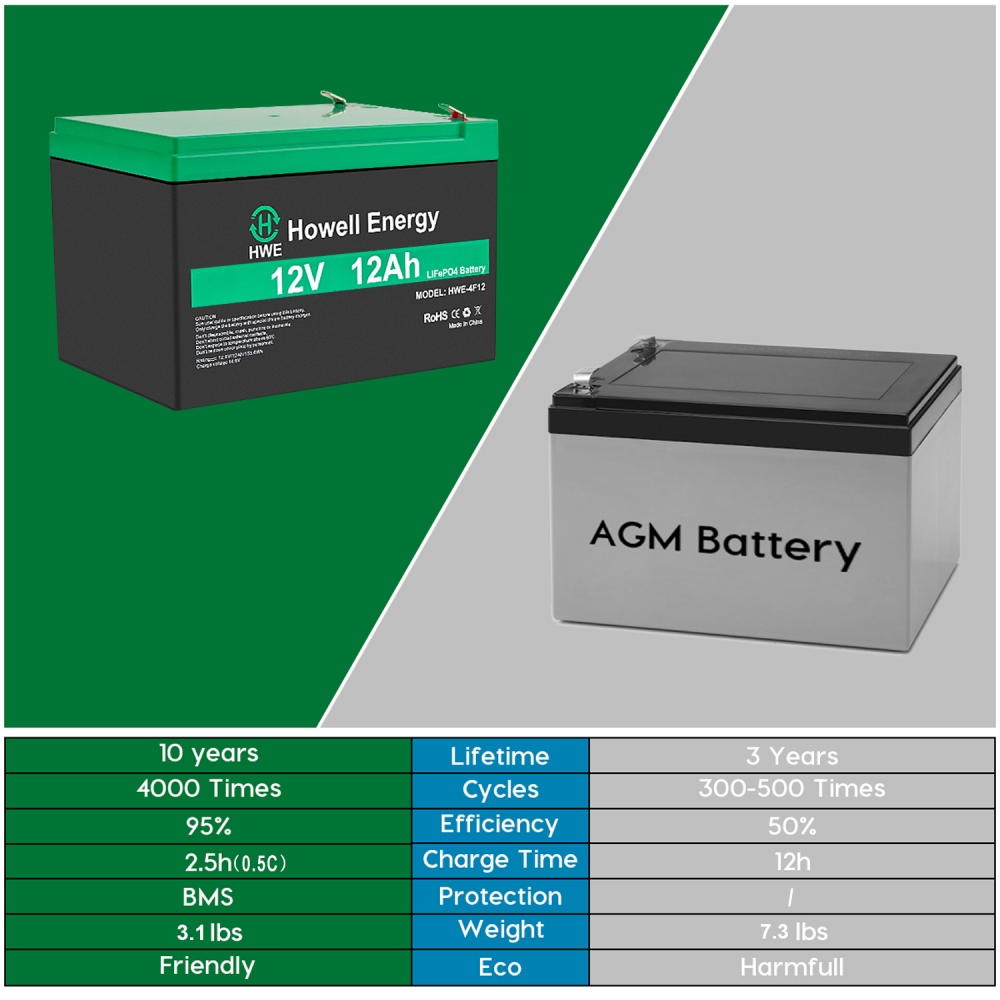

●Small size, light weight, the same energy lithium battery, the weight and volume are 1/3 of the lead acid.
●No Heat Generation, Mitigation, Thermal Monitoring or Toxic Cooling
●98% Efficiency Rate
●Fast Charge & Discharge Rates
●Seamless Integration with All Industry Standard Inverter/Charge Controllers
●Modular, Scalable & Proven Performance
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
◆ Experience——more than 21 years of lithium battery professional experience, leading lithium battery.
◆ Certification——North American Certification: UL
European certification: CE/ROHS/REACH/IEC62133
Asia and Australia Certificate: PSE/KC/CQC/BIS
Global certificate: CB/IEC62133/UN38.3/MSDS
◆ Quality control——more than 30 production processes and more than 7 quality inspections to ensure stable quality and high
reliability.
◆ Best materials——insist on choosing the best quality batteries, materials and accessories, and lithium batteries will last longer.
◆ New batteries——all batteries are newly produced.
